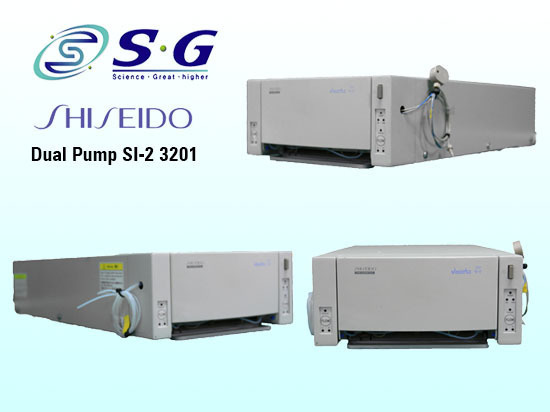

Shiseido HPLC Dual Pump 3201/ Dual Pump MS 3301

Product No.

3201

3301

Product Name

Dual Pump

Dual Pump MS

Pumping System

Dual plunger pump

Drive System

Pulse motor driven constant flow rate / constant pressure system

Flow Rate Range

0 to 3000 µL/min

Flow Setting

By PC-based software only

Flow Rate Accuracy

Within ±2% or ±2µL/min (Under specified conditions)

Flow Rate Precision

Within ±0.3% (Under specified conditions)

Pressure Range

0 to 35 MPa
(0.1MPa increments)

0 to 25 MPa
(0.1MPa increments)

Pressure Limiter

Low pressure and High pressure

Flow Path Composition

PEEK, ruby, sapphire, polyethylene, teflon, and diflon

Output Signal

Program start signal, pressure waveform signal (analog), and system controller connector

Control

PC-based control software

Temperature

10 to 35 °C

Power

AC 100 to 240 V ±10%, 50/60Hz, 150W

Dimensions

245 (W) x 115 (W) x 495 (D) mm

Weight

Approx. 13kg
