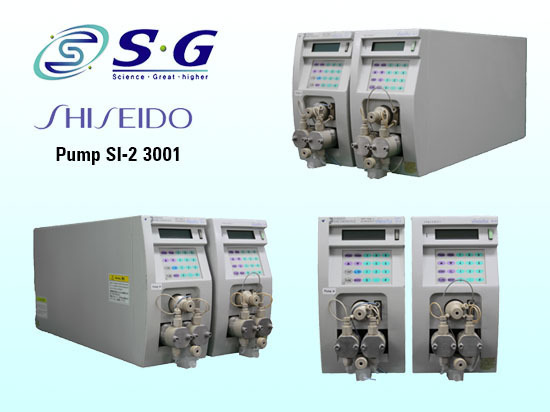

Shiseido HPLC Inert pump 3001
|
Product No.
|
3001
|
Product Name
|
Inert pump
|
Pumping System
|
Dual plunger pump
|
Drive System
|
Pulse motor driven constant flow rate/constant pressure system
|
Flow Rate Range
|
1 to 3,000 µL/min
|
Maximum Pressure
|
35 MPa
|
Flow Setting
|
By numerical ten keys
Constant flow: at 1 µL/min increments
Constant pressure: in 0.1 MPa increments
|
Flow Rate Accuracy
|
±2% (methanol, 100 µL/min)
|
Flow Rate Precision
|
RSD 0.2% (methanol, 100 µL/min)
|
Flow/Pressure
|
ControlMaximum pressure: 35 MPa
Minimum pressure: 0 MPa
Increment: 0.1 MPa
|
Flow Program
|
Time-flow rate, programmable in 50 steps
Flow rate: 0 - 3000 µL/min
Time: 0 - 999.9 min
|
Flow Path Composition
|
PEEK, ruby, sapphire, polyethylene, and fluoroplasticOperating
|
Temperature
|
10 - 35°C
|
Power
|
AC 100 V ±10%, 50/60 Hz, 80 W
|
Dimensions
|
120(W) x 230(H) x 515(D) mm
|
Weight
|
About 12 kg
|
