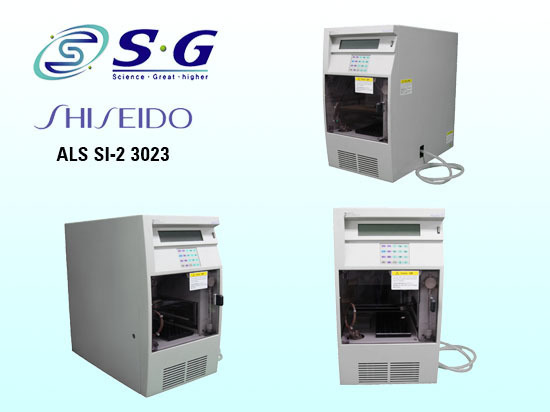

Shiseido HPLC Autosampler 3023

Product No.

3023

Product Name

Autosampler

System

Total injection system of variable sampling volume

Sample Vial

250 µL PP
Optional: 2 mL glass, 96-well microplate, and 50 µL PP

Sampling Microsyringe

Gas-tight Type 100 µL

Sample Injection Volume

100 µL syringe: 0.1 to 400 µL in 0.1 µL increments

Injection Precision

RSD less than 1% at 1 µL injection

Repeated Injection

1 - 10 times for each vial

Max. Sample Number

100 (100-sample vial holder with 250 or 50 µL PP vials),
200 (200-sample vial holder with 250 or 50 µL PP vials),
50 (50-sample vial holder with 2 mL glass vials), or
96 (96-sample vial holder with 96-well microplate)

Sample Cooling

Electronic refrigeration: 4 to 20°C (variable setting)

Operational Pressure

35 MPa (max.)

Interruptible Analysis

Included in Standard Model

Rinsing Solution Port

Included in Standard Model

Error Self-diagnosis

Included in Standard Model

Input/Output Signals

Integrator start, auto-zero, start, end, stop, error signal,
SYSCON

Power

AC 100 V ±10%, 50/60 Hz, 350 W

Dimensions

258(W) x 460(H) x 487(D) mm

Weight

About 31 kg
