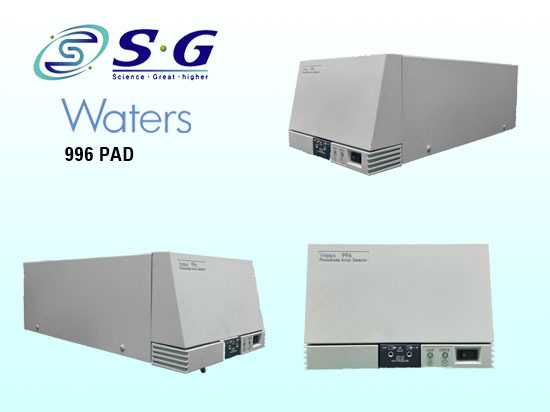

Waters 996 Photodiode Array Detector
|
Wavelength range
|
190 to 800 nm
|
Wavelength accuracy
|
+/- 1nm
|
Linearity range
|
5% over -0.1 to 2.0 AU
|
Spectral resolution
|
1.2 nm per photodiode
|
Baseline noise
|
5 x 10 -5 AU peak-to-peak
|
Drift
|
1 x 10 -3 AU/hour at 254 nm (after warmup)
|
Operating temperature
|
4 to 40 °C (39 to 104 °F)
|
Operating humidity
|
20 to 80% non-condensing
|
Flow Cells
|
Standard pathlength
|
10 mm
|
Semi-preparative pathlength
|
3 mm
|
Microbore pathlength
|
6 mm
|
Inert pathlength
|
10 mm
|
