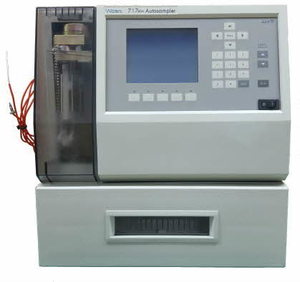

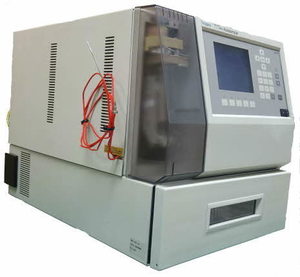

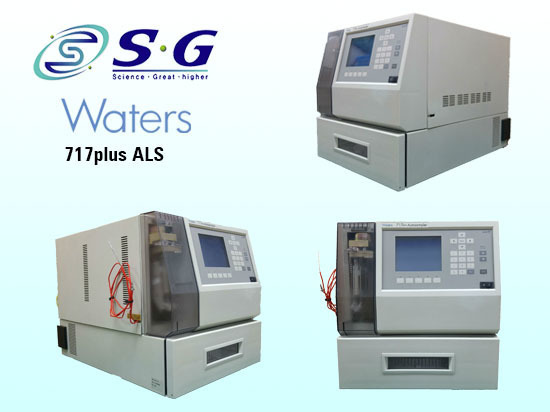

waters 717Plus Autosampler

Precision (typical from 5-100 µL)

0.5%

Linearity (1-100 µL)

0.999 coefficient of correlation

Carryover

≤0.1%

Injection Volume Range

0.0 - 2000 µL

Sample Waste per Injection

None

Replicate Injections per Vial

1-99

Minimum Sample for 1µL Injection

7 µL

Sample Capacities/Carousels

48 samples with 4 mL capacity

96 samples with 1 mL capacity

Sample Temperature Control

4 °C – 40 °C (using optional Heating/Cooling module)

Display

LCD, backlit with adjustable contrast

External Event Contact Closures

2-inject starts

1-inject stop

1-time programmable

Communications

RS-232 output

IEEE-488 input/output

BCD output for vial number (optional)

Advanced Automation Routines

Auto-Addition

Auto-Transfer

Needle Height Programmability

Auto Standards

“Stat” priority sampling

Modes of Operation

Standalone programmability through front panel IEEE-488 control from Waters Data Systems

Power Requirements

110-220 V; 50-60 hz

Wetted Surface Materials

316 Stainless Steel, Teflon®, Glass, Fluoraloy-08 R, UHMWPE

Allowable Solvents

All standard LC solvents

Inlet Tubing to Injector

0.040 I.D. stainless stee
