제품 상세보기

제품 상세보기

제품명
GC(6890N)
Model
6890N + ALS
상태
아주 양호함

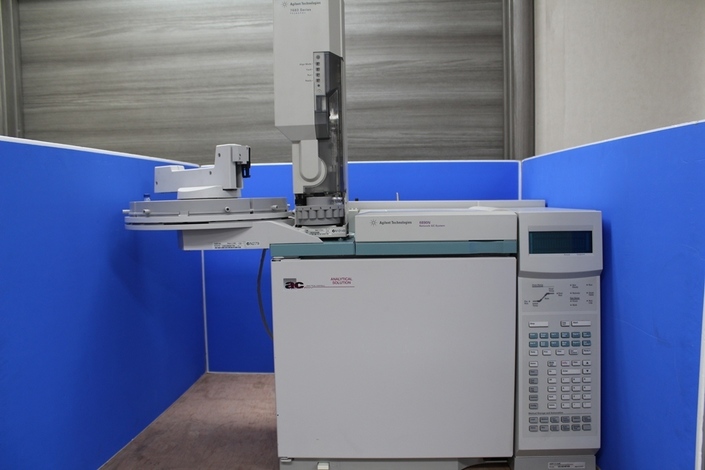

GC Network System(6890N) + ALS(7683)

Height

50 cm (19.7 in.)

Width

58 cm (26.8 in.)

Depth

54 cm (21.6 in.)

Average Weight

49 kg (108 lb)

Networkable

Yes

6890 Environmental Conditions

Ambient Operating Temperature

15 ˚C to 35 ˚C

Ambient Operating
Humidity

5-95 %

Agilent 6890 Column Oven

Storage Extremes

-40˚C to 65˚

Line Voltage Requirements

±5% of nominal

Dimensions

28 x 31 x 16 cm

Operating temperature

4˚C above ambient to 450˚C

Maximum setpoint temperature rate

120˚C/min

Available Detectors for the

Agilent6890GC

Flame ionization detector (FID)
Thermalconductivitydetector(TCD)
Micro-electroncapturedetector(micro-ECD)
Nitrogen-phosphorusdetector(NPD)
Single-ordual-wavelengthflamephotometricdetectors(FPD)
Atomicemissiondetector(AED)
Massselectivedetector(MSD)

Agilent 7683 Automatic Liquid
Sampler
Operating temp range -5 to 45˚C
Operating humidity range

80% up to 31˚C

50% at 40˚C

Max. Altitude Up to 4300 meters
