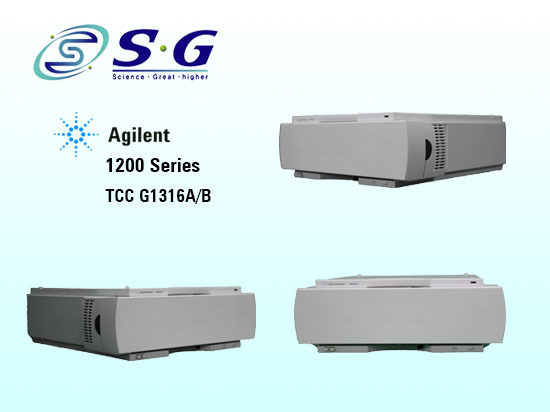

Agilent 1200 Series Thermostatted Column Compartment

Temperature range

10 degrees below ambient to 80 °C (G1316A)

10 degrees below ambient to 100 °C (G1316B)

Temperature stability

± 0.15 °C (G1316A)

± 0.05 °C (G1316B)

Temperature accuracy

± 0.8 °C with calibration ± 0.5 °C

Column capacity

three 30-cm columns

Heat-up/cool-down time

5 min from ambient to 40 °C
10 min from 40°C to 20°C

Internal volume

3 µL left heat exchanger
6µL right heat exchanger

GLP

Column identification module for GLP documentation of column type
